General

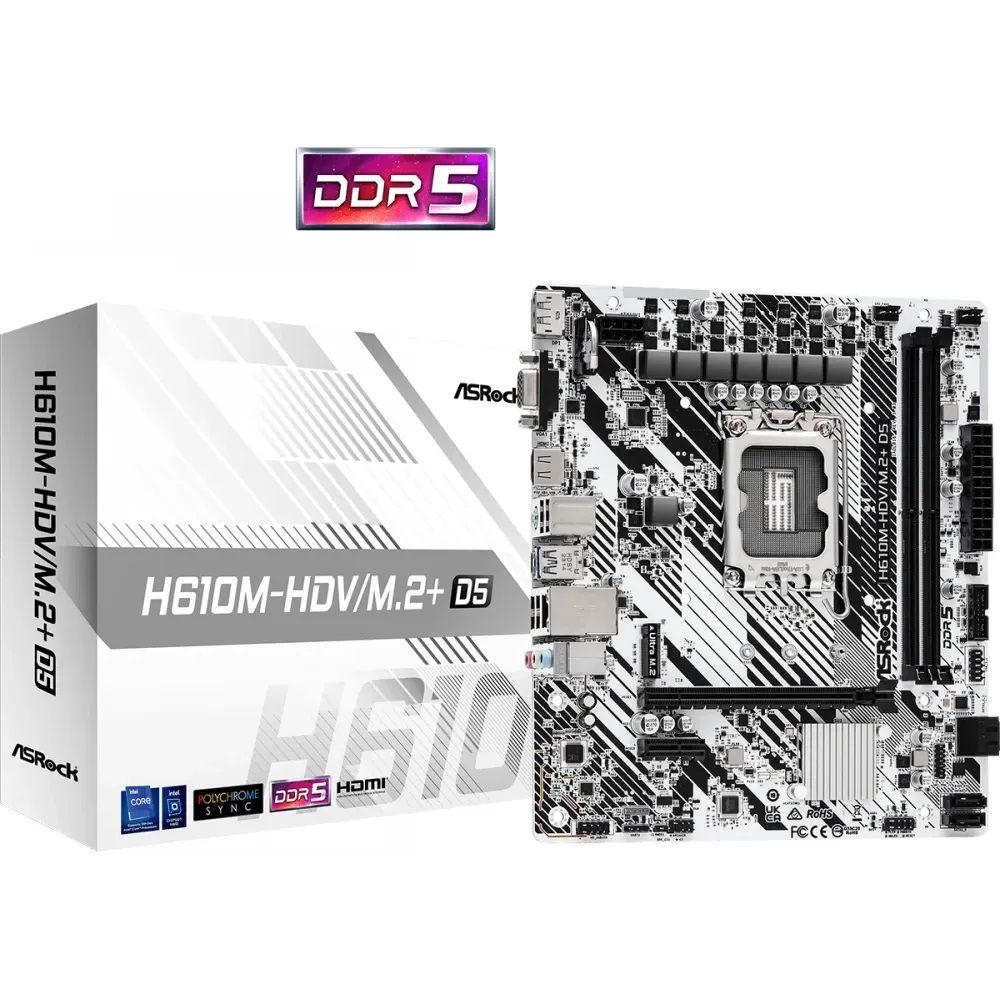

Product Type: Motherboard - micro ATX
Chipset Type: Intel H610
Processor Socket: LGA1700 Socket
Max Processors Qty: 1
Compatible Processors: (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size: 96 GB
Technology: DDR5
Bus Clock: 4800 MHz, 5600 MHz
Supported RAM Integrity Check: Non-ECC
Registered or Buffered: Unbuffered
Features: Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, supported ECC modules operate in non-ECC mode
Audio
Type: HD Audio (8-channel)
Audio Codec: Realtek ALC897
Compliant Standards: High Definition Audio
LAN
Network Controller: Realtek RTL8111H
Network Interfaces: Gigabit Ethernet
Expansion / Connectivity
Expansion Slots: 1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x Ultra M.2 (2242/2260/2280 M.2 Key M slot)
Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces: 1 x PS/2 keyboard / mouse
1 x VGA
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
1 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
Internal Interfaces: 1 x SPI - header
1 x speaker - header
1 x audio - header
2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type: AMI
BIOS Features: UEFI BIOS
Hardware Features: 6+1+1 Phase Power Design, Water Pump Header, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Polychrome RGB
Miscellaneous
Included Accessories: IO shield, 1 x M.2 screw
Cables Included: 2 x Serial ATA cable
Software Included: Drivers & Utilities, ASRock A-Tuning, ASRock XFast LAN, ASRock Polychrome SYNC
Compliant Standards: FCC, EuP Ready, ErP Ready, RoHS, UKCA
Width: 22 cmDepth: 19.3 cm
