General

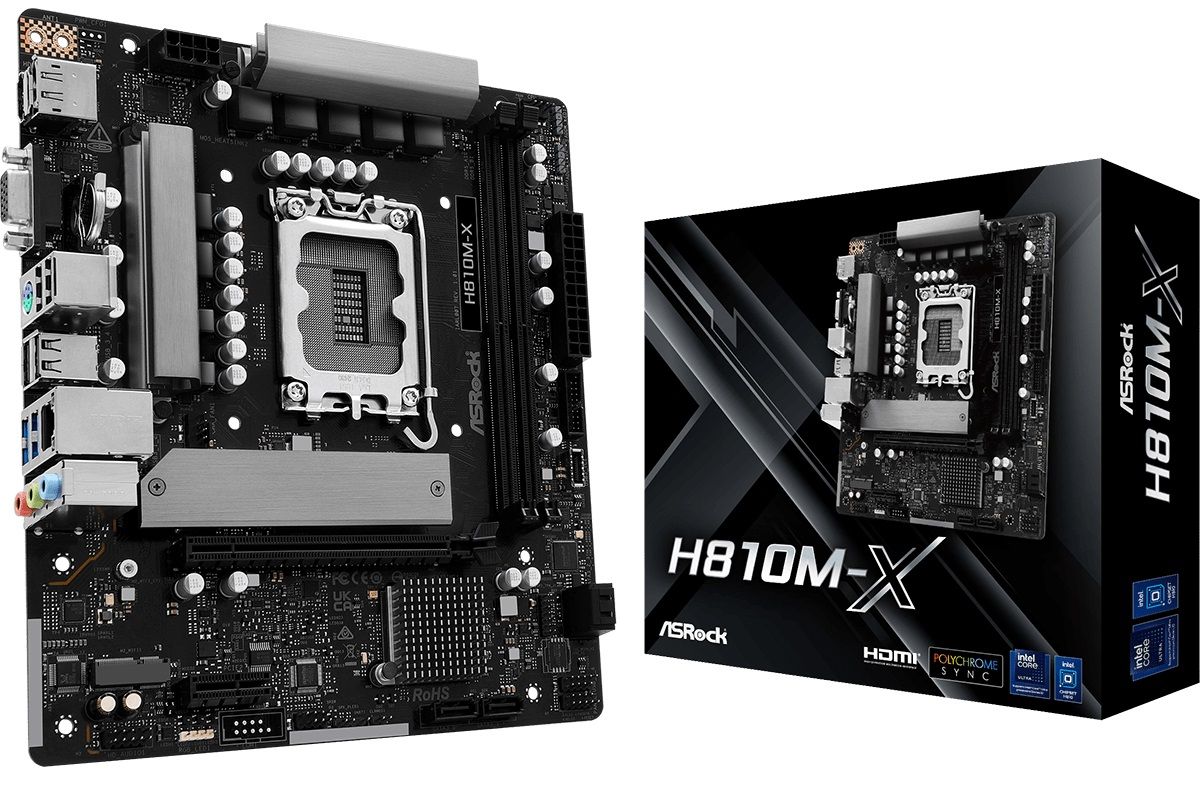

Product Type: Motherboard - micro ATX
Chipset Type: Intel H810
Processor Socket: LGA1851 Socket
Max Processors Qty: 1
Compatible Processors: (supports Intel Core Ultra processors (Series 2))
Supported RAM
Max Size: 128 GB
Technology: DDR5
Bus Clock: 6400 MHz
Supported RAM Integrity Check: Non-ECC
Registered or Buffered: Unbuffered
Features: Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture
Audio
Type: HD Audio (8-channel)
Audio Codec: Realtek ALC897
Compliant Standards: High Definition Audio
LAN
Network Controller: Dragon RTL8125BG
Network Interfaces: 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots: 1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
1 x M.2 socket (Key E, for wireless module)
Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x Hyper M.2
Interfaces: 1 x HDMI
1 x VGA
1 x PS/2 keyboard / mouse
1 x DisplayPort
1 x LAN (2.5Gigabit Ethernet)
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
2 x aerial
Internal Interfaces: 1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x audio - header
1 x SPI - header
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type: AMI
BIOS Features: UEFI BIOS
Hardware Features: 16+1+1+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, aluminium heatsink design, ASRock FAN-Tastic Tuning, ASRock Polychrome RGB, DIY Friendly Design
