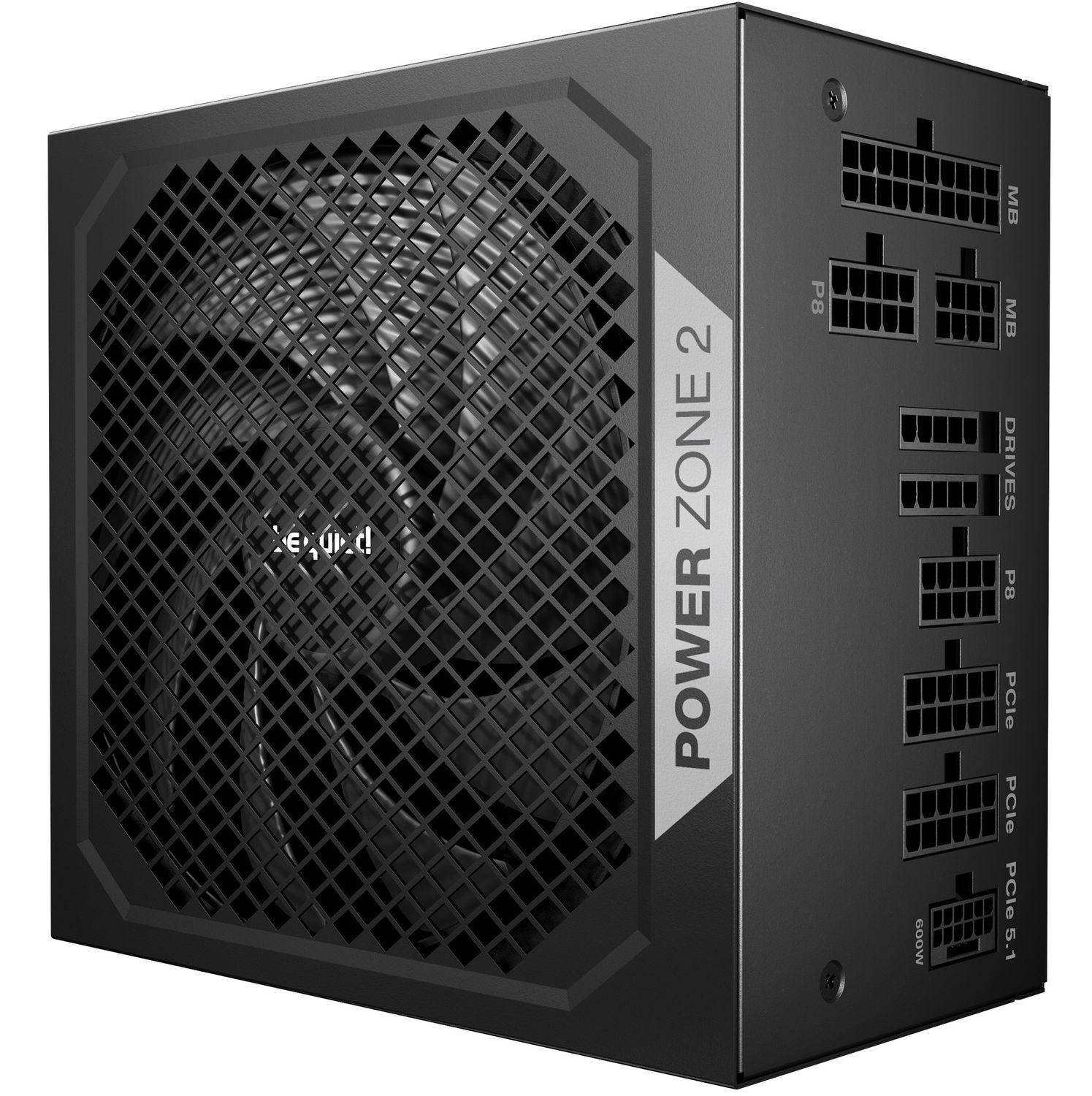

POWER ZONE 2
750W
Exceptional efficiency for Gamers
Power Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.
80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.2%)
Semi-passive zero-RPM cooling
Fan runs on for 2-5 minutes to avoid frequent starting noise
Pure Wings 3 140mm fan for quiet and efficient cooling
90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
Advanced voltage regulation and stability thanks to LLC technology
Unique look with an unmistakable mesh design
One massive high-performance 12V-rail
General data
Model Power Zone 2 750W
Continuous power (W) 750
Peak power (W) 820
Form factor Version 3.1
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 10 / 5
Power factor at 100% load >0.98
Modern standby ✓
Power consumption in standby (W) <0.18
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40
Fan and cooling technology
Cybenetics Noise Rating A++
Fan Pure Wings 3
Fan size (mm) 140
Bearing technology Rifle
Motor technology 4-pole fan motor
Max. fan speed (rpm) 1800
dB(A) at 10% load 6.5
dB(A) at 20% load 6.5
dB(A) at 50% load 6.5
dB(A) at 100% load 15.8
Cables and connectors
Modular cables ✓
Sleeved cables ✓
Flat cables ✓
Maximum cable length (cm) 100
Cable length to motherboard (cm) 60
No. of cables 8
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) 1
12VHPWR cables 1
PCI-e 6+2-pin (GPU) 3
PCI-e 6-pin (GPU) -
SATA 6
PATA 1
FDD (Floppy)
