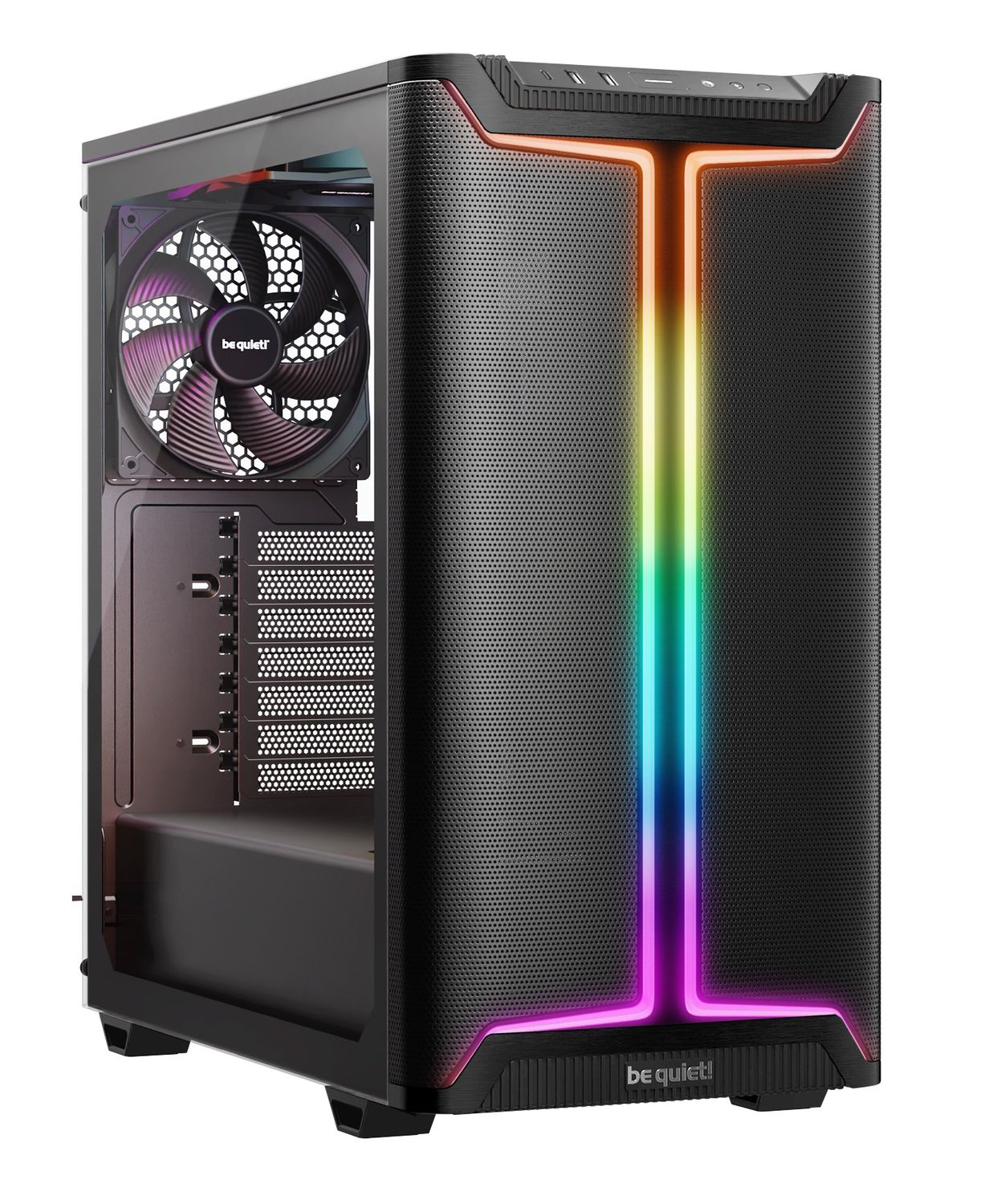

PURE BASE 501 DX
Black
Impressive lighting and airflow
Pure Base 501 DX Black is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application.
High airflow intake front panel and top cover for maximum performance
3 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
Dynamic case front design with elegant ARGB lighting inside and outside of the case
Generous space for high-end graphics cards and large coolers, despite compact footprint
Optional vertical graphics card installation
Water cooling ready for radiators up to 360mm
USB 3.2 Gen. 2 Type C for best connectivity
Side panel made of tempered glass
General data
Model Pure Base 501 DX Black
Color option Black
Motherboard compatibility ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 24.4
PSU form factor ATX PS/2
Net weight (kg) 7.8
Expansion slots 7
Pre-installed fans
Fan at top 1x Pure Wings 3 140mm PWM
Fan at front 1x Pure Wings 3 140mm PWM
Fan at side -
Fan at rear 1x Pure Wings 3 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.6
Input current (A) 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Fan controller -
Maximum fan installation
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Side (mm) -
Rear (mm) 1x 140 / 1x 120
Bottom (mm) -
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Side (mm) -
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 200
Maximum dimensions incl. bottom fan (mm) 180
Graphics card
HDD cage (in height of graphics card) installed (mm) 368
HDD cage (in height of graphics card) removed (mm) 368
Maximum PCIe slots with vertical graphics card (pcs.) 5
