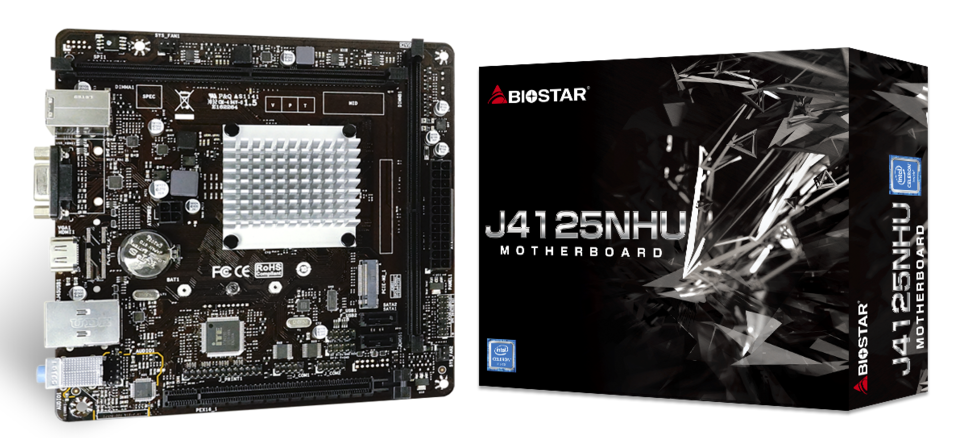

CPU SUPPORT J4125NHU: Intel Celeron J4125 processor

MEMORY Supports Dual Channel DDR4-1866/ 2133/ 2400

2 x DDR4 DIMM Memory Slot, Max. Supports up to 8 GB Memory

Each DIMM supports non-ECC 4GB DDR4 module

INTEGRATED VIDEO By CPU model

Supports DX12

STORAGE 2 x SATA III (6Gb/s) : Supports AHCI

1 x M.2 (M Key) : Supports PCI-E 2.0 x2 (10Gb/s) & SATA III (6Gb/s) SSD

Note : When using SATA SSD module on M.2 slot, the SATA_2 connector will be disabled.

* Specifications vary by CPU types

LAN RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC ALC887 / ALC897

7.1 Channels, High Definition Audio

USB 2 x USB 3.1(Gen1) port (2 on rear I/Os)

6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT 1 x PCIe 2.0 x16 Slot (x1 mode)

1 x Key E - M.2 Slot (Optional)

* Specifications vary by CPU types

REAR I/O 1 x PS/2 Keyboard/ Mouse Port

1 x HDMI Port

1 x VGA Port

2 x USB 3.1(Gen1) Ports

2 x USB 2.0 Ports

1 x LAN port

3 x Audio Jack

INTERNAL I/O 2 x SATA III - 6Gb/s Connectors

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

2 x System Fan Connectors

1 x Front Panel Header

1 x Front Audio Header

2 x COM Port Headers

1 x Printer Port Header

1 x Clear CMOS Header

1 x TPM Header (Optional)

H/W MONITORING CPU / System Temperature Monitoring

System Fan Monitoring

System Voltage Monitoring

DIMENSION Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )

OS SUPPORT Supports Windows 10(64bit) / 11(64bit)

※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE BullGuard

ACCESSORIES 2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

FEATURES BIO-FLASHER
