Series

Vostro

Model

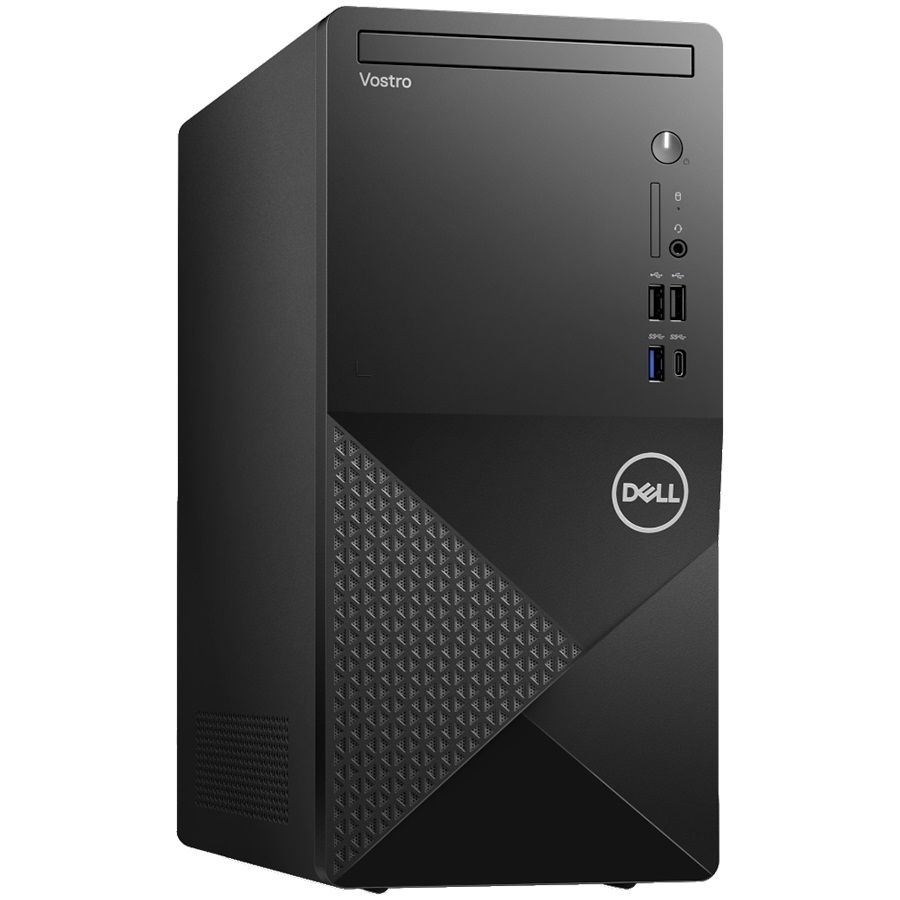

Vostro 3030

System Type

Desktop Computer

System Form Factor

Desktop

Included Accessories

Quick Start Guide

CPU

Intel Core i5-14400 Processor

CPU Core Quantity

10

Threads Quantity

16

CPU podnožje

Socket 1700

CPU Installed Quantity

1

CPU Maximum Quantity Supports

1

Installed L2 Cache Memory Storage Capacity

9.5 MB

CPU Cache Size

20 MB

Chipset

Intel B660

Quantity of Mainboards Supported

1

Performance-cores Quantity

6

Efficient-cores Quantity

4

Vrsta memorije

DDR5 SDRAM

Memory Form Factor

DIMM 288-pin

Memory Capacity

8 GB

Maximum Installable System Memory Storage Capacity

64 GB

Memory Slot Total Quantity

2

Memory Features

Unbuffered

Integrated

Storage Controller:
SATA III-600 (2)
Storage Controller:
M.2

Plug-in-card

Wi-Fi Controller:
M.2

SSD

512 GB, PCIe NVMe

Video Controller Form Factor

Integrated

Video Chipset

Intel UHD Graphics 730

Vrsta video memorije

Shared Video Memory

Audio Controller Form Factor

integrated

Audio Chipset

Cirrus Logic CS8409 + CS42L42

Audio Output Mode

5.1 Channel Surround

Compliant Audio Standards

High Definition Audio

Networking Form Factor

Integrated

LAN Chipset

Realtek RTL8111HD

LAN

Gigabit Ethernet

Wi-Fi

Yes

Bluetooth

Bluetooth 5.3

Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet

PCI Express x16

1

PCI Express x1

2

LAN

1 (RJ-45)

USB 3.2 Gen 1

3 (USB 3.2 (type A)), 1 (USB 3.2 (type C))

USB 2.0

4 (USB 2.0 (type A))

Headset Port

1 (3.5-mm minijack)

Audio Line-Out

1 (3.5-mm minijack)

DisplayPort

1

HDMI

1 (HDMI (Type A))

Name of OS

Microsoft Windows 11 Pro

Power Device Type

Power Supply

Power Device Location

Internal

Input Voltage

AC 90-264 V

Input Frequency

47/63 Hz

Power Device Installed Quantity

1;

Power Device Maximum Quantity Supports

1

Maximum Output Power

180 W

External Color

Black

Mounting Capability

Desktop

Included Accessories

Quick Start Guide

Maximum Operating Ambient Temperature

35 °C

Minimum Operating Ambient Temperature

0 °C

Maximum Operating Humidity

90 %

Minimum Operating Humidity

10 %

Maximum Non-Operating Ambient Temperature

65 °C

Minimum Non-Operating Ambient Temperature

-40 °C

Maximum Non-Operating Humidity

95 %

Minimum Non-Operating Humidity

0 %

Max. Altitude Operating

3048 m

Max. Altitude Storage

10668 m
